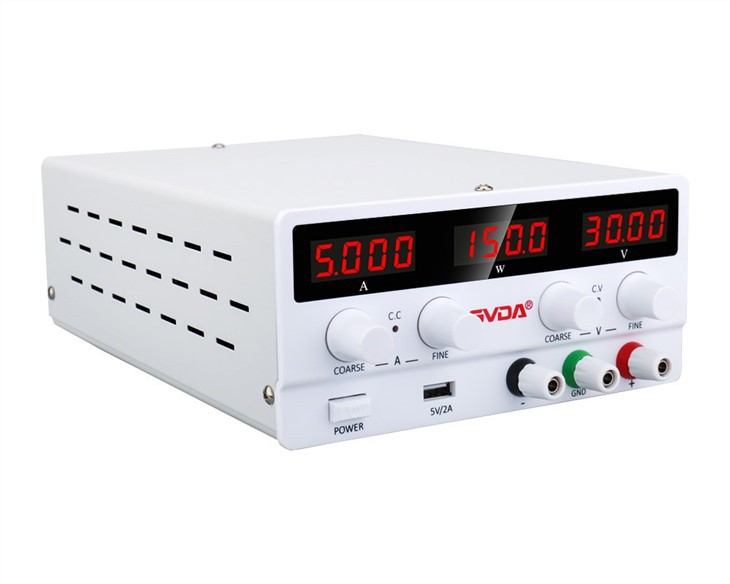

Portable USB DC Regulated Laboratory Power Supply

GVDA USB DC Voltage Regulated Lab Power Supply 60V 5A Adjustable Voltage Regulator Stabilizer Switching Bench Source Portable USB DC Regulated Laboratory Power Supply

The power supply uses advanced technology PWM, voltage, current can be continuously adjustable from 0 - 30V/60V/120V Rating obtain Ultra-low ripple. High-precision reference voltage source, rational circuit design, the ability to provide highly accurate output. High-power MOS devices Application, to ensure adequate power supply, improve the long-term stability of the power at full load work. Perfect protection function, in order to protect the load And the power supply are not damaged. Simple operation, and a plurality of power supply can be directly connected in series, parallel, expanded power Range of applications.

Technical Details

1. Input voltage: 220V 10 percent @ 50Hz 5Hz

110V 10 percent @ 60Hz 5Hz
Switch or a single voltage input
2. Output voltage: DC 0- 30V/60V/120V Ratings V (see Table I)
3. Output Current: DC 0-3A/5A/10A rated A (see Table I)
4. Display Accuracy:
1 percent 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)
{{0}}.1 percent 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
5. boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
6. Voltage Stability: Less than or equal to 0.05 percent plus 1mV
7. The current stability: Less than or equal to 0.1 percent plus 10mA
8. Load stability: CV Less than or equal to 0.05 percent plus 1mV
CC Less than or equal to 0.05 percent plus 10mA
9. Ripple and Noise: CV Less than or equal to 10mV
CC Less than or equal to 20mA (RMS)
10. Overall efficiency: Greater than or equal to 80 percent (under full load test)
11. Working environment: -10 - plus 40 Relative humidity 20 percent -80 percent (non-condensing)
12. Storage Environment: -20 - plus 80 Relative humidity 20 percent -70 percent (non-condensing)
13. Pressure test: Input - Output: 1.5KVAC / 1 Minute
Input - Housing: 1.5KVAC / 1 Minute
Output - Housing: 500VAC / 1 Minute
14. Ground Resistance: <>

Package List:

1pcs DC Power Supply
1pcs Power Cable
1pair Crocodile Clip Line

Product Details

Portable USB DC Regulated Laboratory Power Supply

FAQ

1. How can we ensure quality?

We have a strict engineering system. The RD team makes the sample first and have professional debugging before mass production. Each product needs to be tested through multiple processes, and finally entry into the inventory system.

2. Is there any spare parts service if the order is large?

Of course, we will evaluate the quantity of spare parts according to your order.

3. As for terms of payment, do you accept PayPal?
Yes, we accept PayPal for small orders, but when order value up to 1500 USD, we accept T/T.

4. What are the certificates for your products?

It depends products, normally ROHS,CE, FCC are available, some with QI or MFI or other certificate.
